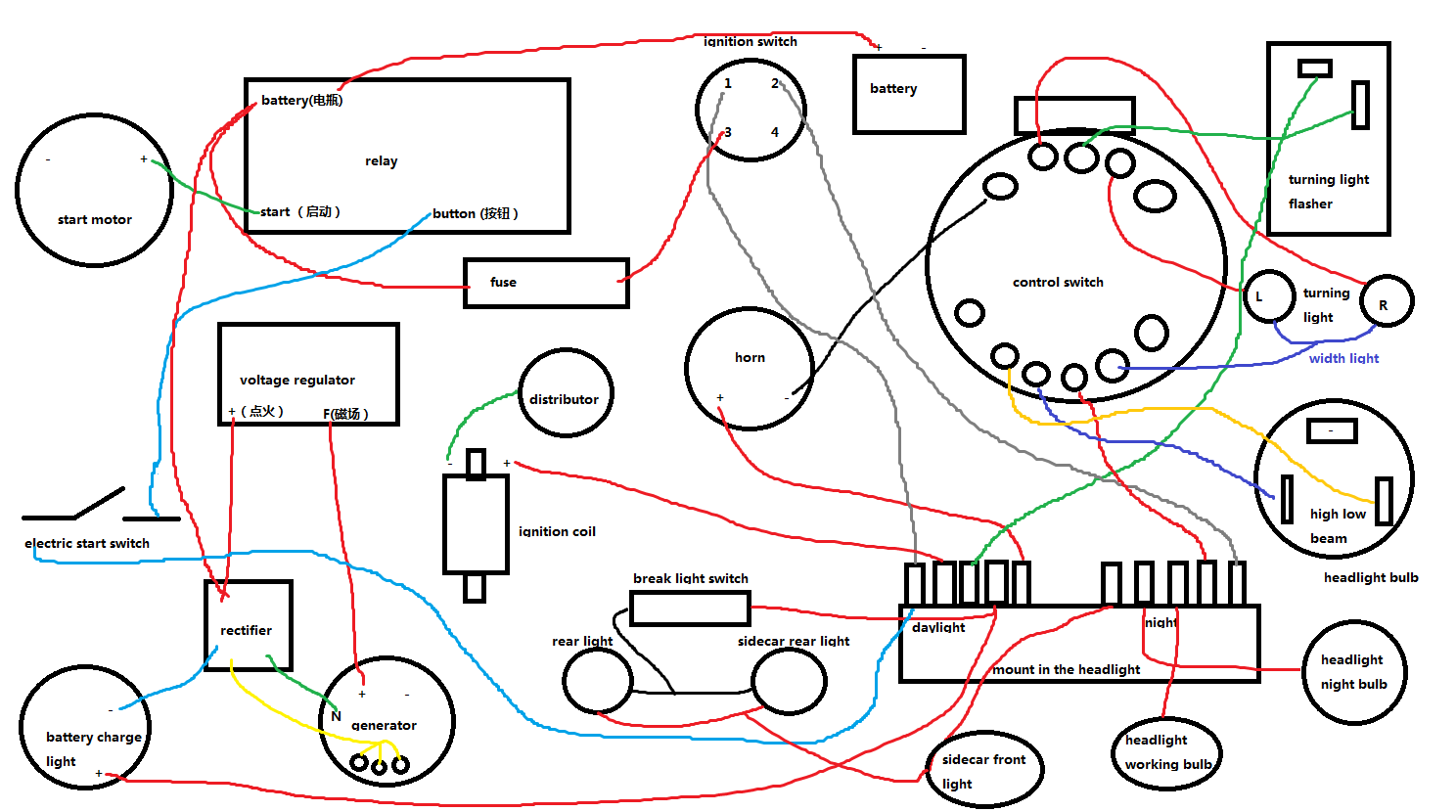

Here is CJ750 M1M / M1S 12V elecctric diagram.

1. High and low beam
2. Instrument indicating light
3. Front right turn light
4. 15A fuse
5. Ignition switch JK424
6. Terminal plate
7. Electric starting switch JK911A
8. AC generator MJF-280B
9. Rectifier GZL-1
10. Regulator FT111
11. Starter MZQ-07A
12. Side car front light
13. Relay contactor JN3
14. Battery 6-MA-28
15. Side car tail light
16. Rear right turn light
17. Main body tail light
18. Rear left turn light
19. Brake switch
20. Ignition coil DQ107
21. 20A Safeguard
22. Spark plug (M1M=4114, M1S=4135)
23. Capacitor
24. Cutout FDQ-5
25. Electric horn DL 124D
26. Left hand control switch (general switch) JK719
27. Flasher SD56 (12V)
28. Front left turn light
29. Charging indicating light
